Photo by Komatta. Wikimedia Commons — Public Domain

If you grew up in the '90s or early 2000s, you probably remember hunting around the back of your TV for the right port. There was the yellow composite jack, the red and white audio cables, and then there was this small, round, 4-pin connector that looked slightly more serious than everything else. That was S-Video. And if you used it, you knew the difference instantly.

The Short Version: What Is S-Video?

S-Video stands for Separate Video — sometimes called Y/C or Super Video. It’s an analog video signal standard that was widely used from the late 1980s through the mid-2000s.

The key idea behind S-Video is simple but powerful: keep brightness and color in separate lanes.

• Y (Luma) — carries the black-and-white brightness information, plus sync pulses
• C (Chroma) — carries the color information

This is a big deal because the main alternative, composite video, crams all of that into a single signal. When luma and chroma share the same wire, they bleed into each other and create visual artifacts. The most notorious one is called dot crawl — that shimmering, crawling noise you sometimes see along the edges of colored objects on older TVs. S-Video eliminates it entirely.

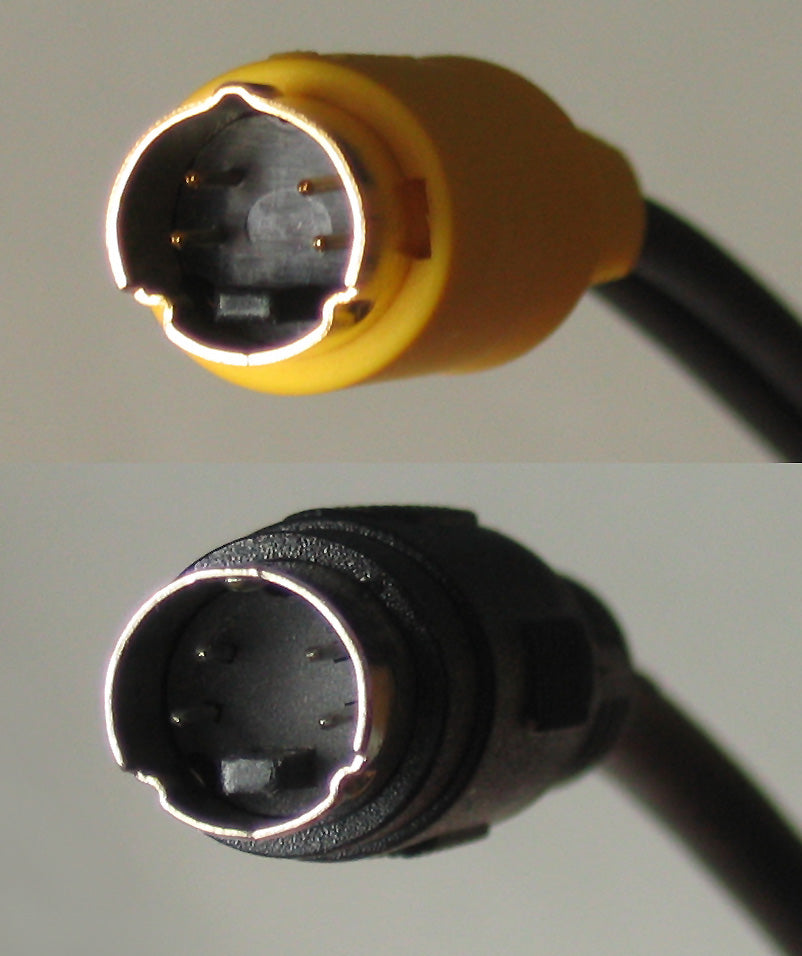

The connector itself uses a 4-pin mini-DIN plug at 75 ohms impedance, small, sturdy, and immediately recognizable by its round shape and the notch that keeps you from plugging it in the wrong way.

A Quick History

The concept of separating luma and chroma actually dates back to 1979, when Atari included separate Y/C outputs on the Atari 800 computer. But it didn’t catch on with the wider consumer market until 1987, when JVC introduced the S-VHS format. S-VHS needed a better connection to deliver its higher-resolution picture, and the S-Video connector was born.

What surprised everyone? Using an S-Video cable made regular VHS tapes look better too, not just S-VHS ones. That practical benefit helped drive adoption fast.

By the 1990s, S-Video was everywhere:

• VCRs and S-VHS decks
• DVD players
• Game consoles (PlayStation, Nintendo 64, Sega Dreamcast, and many more)
• Camcorders
• TV tuner cards and graphics cards with TV-out
• Projectors and AV receivers

It held on well into the early 2000s before HD formats made it obsolete. Even then, it stayed relevant for retro gaming setups and analog capture workflows long after HDMI took over living rooms.

Why Was It So Popular?

S-Video hit a sweet spot that nothing else at the time could match:

• Better than composite — no dot crawl, no color bleeding, sharper edges
• Simpler than component — just one cable, not three
• Widely supported — almost every consumer AV device of the era had the port
• Noticeable upgrade — the visual improvement was obvious, even on average TVs

For anyone who cared about picture quality without wanting to build a professional AV setup, S-Video was the answer. It was the enthusiast’s choice hiding in plain sight, a standard upgrade that anyone could do with one cable swap.

Preserving the Past: S-Video and Video Digitization

Today, S-Video matters again, for a different reason.

Millions of hours of home video footage are sitting on VHS tapes, Hi8 cassettes, and S-VHS recordings. That footage is degrading. Magnetic tape doesn’t last forever, and every year that passes means more memories lost.

Digitizing those tapes through the S-Video output is the highest-quality path available for standard-definition analog sources. Because S-Video keeps luma and chroma separate all the way from the player to your capture device, you preserve more detail and avoid introducing the color artifacts that composite introduces.

The RetroVision Digitizer: Built for This

That’s exactly why the RetroVision Digitizer includes a full S-Video input — and ships with an S-Video cord in the box.

You don’t need to hunt for a compatible cable. You don’t need an adapter. You plug your VCR, game console, or camcorder directly into the Digitizer via S-Video, and you capture your footage at the best quality the source can deliver.

Whether you’re archiving decades of family memories, capturing retro gameplay footage, or digitizing a tape collection, S-Video gives you the cleanest signal path, and the RetroVision Digitizer is built to make the most of it.

Your memories deserved better than composite. Now they can have it.
